3d Modeled Components
All components are 3d computer modelled and digitally tested in
simulations before they are laser cut, CNC machined or 3d
printed. Giving extremely precise final parts. With computer
models of all parts available customization what he had done
that there are not enough for youheis quickly and
easily achieved |
|
CNC Machined
and Anodised Parts
Parts are CNC machined, from the 3D computer models, and then
anodised any colour. Giving us the ability to create individual
personalised parts |
 |

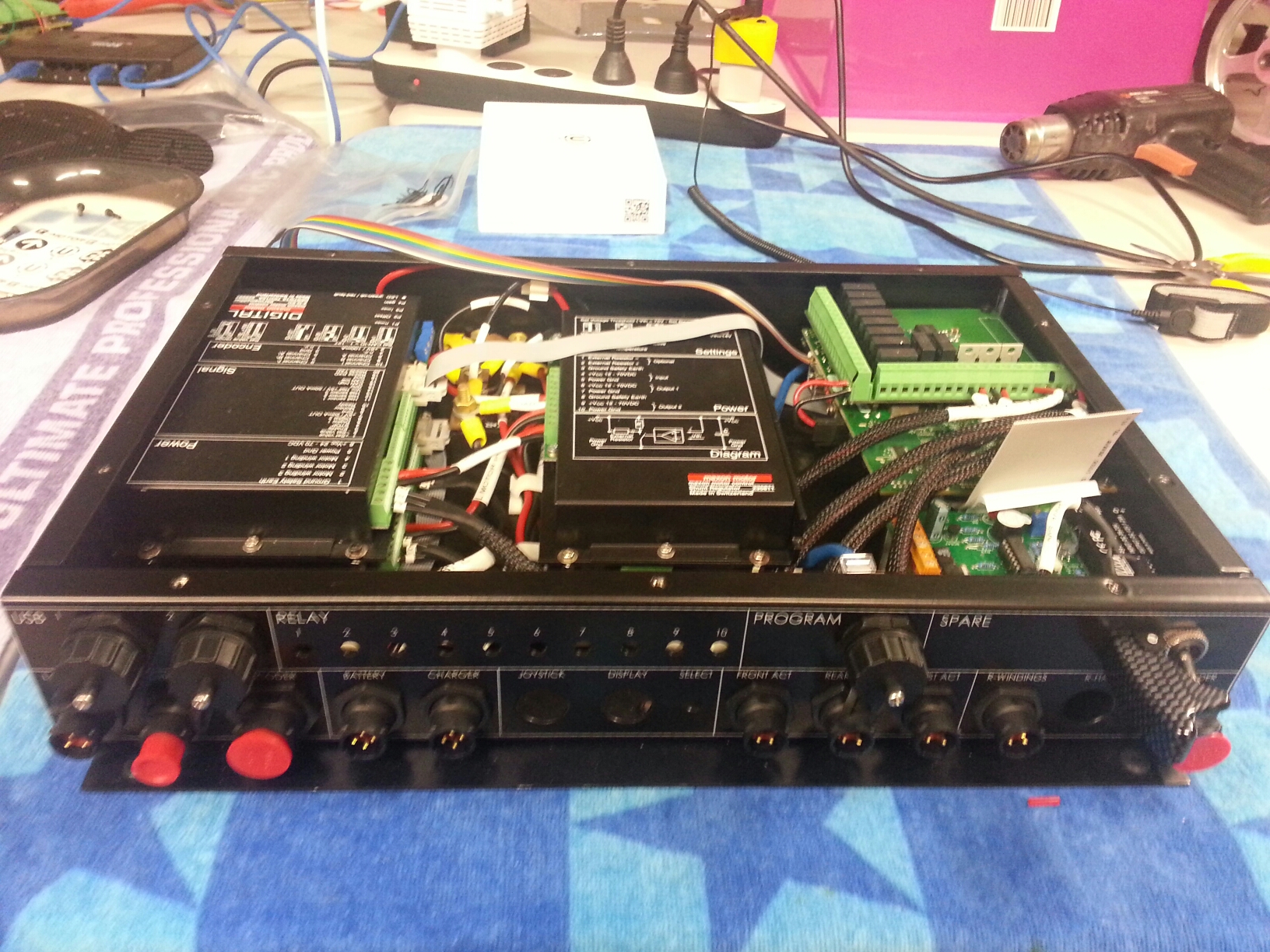

Robust
Electronics
The drive computer is from unmanned
aerial vehicles (UAV),
commonly known as drones. Giving a rugged field proven brain for
the power wheelchair |
 |

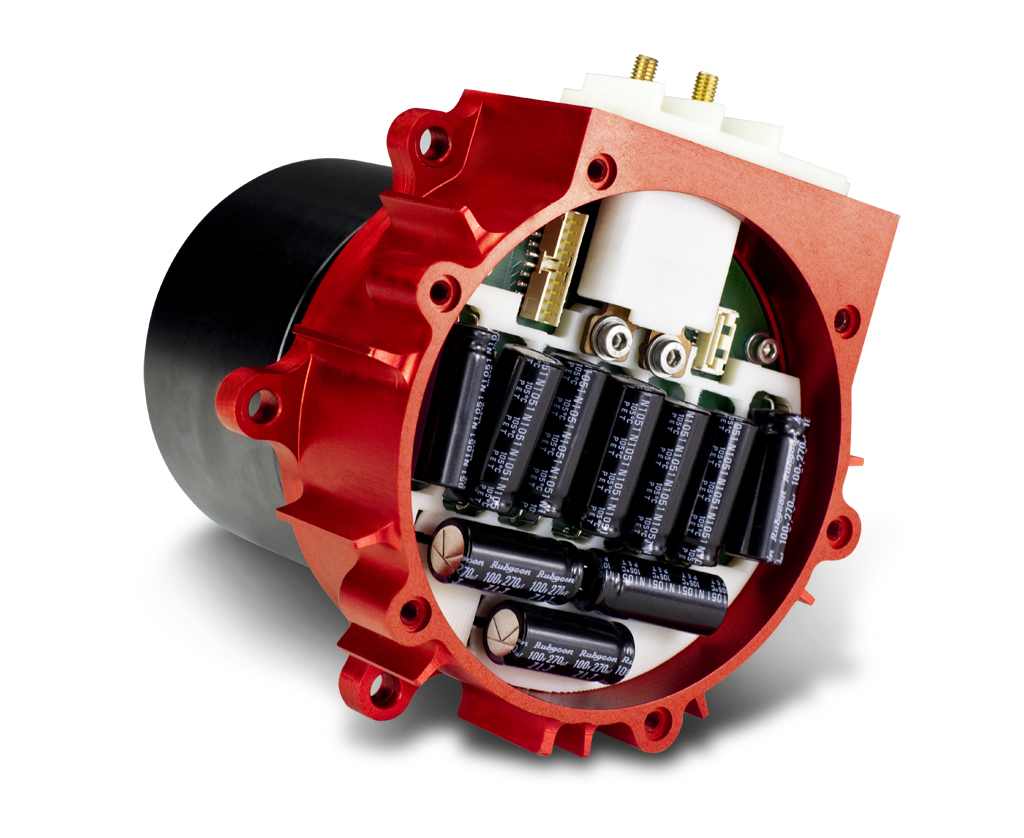

1000W Brushless
Motors
The motors are CAN bus controlled, directly controlling the
speed of the motors, IP54 protected, produce 7Nm of torque and
are over 90% efficient. |
 |
| |
|
High Torque Gearbox
An aluminium 30:1 helical bevel parallel shaft gear box from
light industry that is capable of transferring 140Nm of torque
to each drive wheel. This is enough torqueto propel a 120 kg
wheelchair user up to 15° slope at 15 km/h. |
 |
Lightweight
Using Carbon
Fibre, Aircraft/Aerospace (T6) Aluminium and Titanium, the
chair will be significantly lighter than current electric
chairs. The power wheelchair will weigh approximately
80 kg including batteries. |
 |
Lithium Polymer Batteries
The lithium polymer batteries have over twice the life
expectancy and weigh approximately half the weight. Giving a
range of over 40 km and rapid charging can fully recharge the
power wheelchair in under 3 hours |
 |
Smart Phone Override
We have an optional smart phone override. If needed in safety or
fatigue environments a carer can completely override all
controls of the wheelchair with an Android or iPhone app |
 |
Independent Suspension
Full Independent Suspension with 50 mm of travel at all wheels.
A self-leveling mechanism within the suspension allows up to 120
mm of difference between the wheels, while maintaining full
contact with the ground |
 |
Colour Touchscreen & Scroll Menu
All functions of the power wheelchair can be controlled through
the colour touchscreen display or through a single click button
and joystick movements. The colour menus give an
optional advanced drive display, showing rpm and current draw
for both motors, along with wheelchair speed, battery level and
warning lights |
 |
Ancillary Controls
Up to 10 devices can be controlled from the wheelchair through
the touchscreen or scroll menus. The ancillary or peripheral
devices are plugged into the corresponding mono jacks within the
wheelchair. Useful for phones, doors, lights, etc |
 |
Advanced Setup Options
The advanced setup options give control over joystick response
and throttle curves. Giving the user the option of tailoring the
feel and control of the wheelchair |
 |
Advanced Remote Panel
The remote panel can be accessed remotely by Wi-Fi. Giving
access to advanced setup options, live telemetry of both motors
and logs of the past 48 hours of use |
 |
20" Drive Wheel
The larger 20 inch diameter leading drive wheel flattens the
tangent at which obstacles are impacted, reducing the initial
impact. It also increases the step/obstacle height that can be
navigated. By using standard BMX tires we also increase the
range and choice of tyres for people while also increasing
serviceability and decreasing cost. |
 |
| |
|
